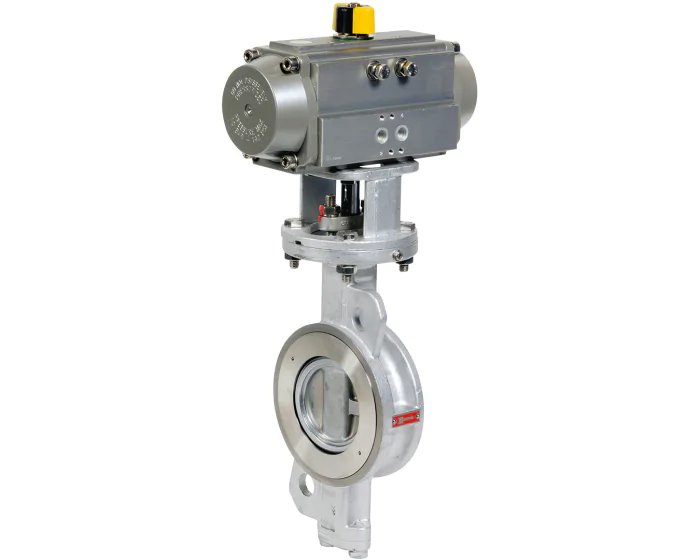

The 1110 double offset butterfly valve has an A216WCB (1.0619) carbon steel body, a stainless steel disc and a PTFE/graphite seat. It is operated by an ALPHAIR pneumatic actuator. PS: 25 bar, TS: 210°C. Mounting between flanges PN25.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 25 |
| Connections | Between flanges PN25 |
| Seats | PTFE-Graphite |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Double offset |
| Wafer/lug | Wafer |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | High performance butterfly valves |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Double acting | 260890017008R | S1000000 |
€603.19
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN50 - 2'' Spring return | 260890017109R | S1000001 |
€690.91
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Double acting | 260891017008R | S1000002 |
€606.79
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN65 - 2''1/2 Spring return | 260891017109R | S1000003 |
€693.76
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Double acting | 260892017008R | S1000004 |
€734.41
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN80 - 3'' Spring return | 260892017110R | S1000005 |
€906.23
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN100 - 4'' Double acting | 260893017009R | S1000006 |
€863.46
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Double acting | 260894017010R | S1000007 |
€1,074.26
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN125 - 5'' Spring return | 260894017112R | S1000008 |
€1,307.54
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Double acting | 260895017011R | S1000009 |
€1,267.54
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN150 - 6'' Spring return | 260895017113R | S1000010 |
€1,725.49
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Double acting | 260896017012R | S1000011 |
€1,961.04
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset DN200 - 8'' Spring return | 260896017114R | S1000012 |
€2,480.36
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset Double acting DN250 - 10'' | 260897017012R | S1000013 |
€2,471.70
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset Spring return DN250 - 10'' | 260897017115R | S1000014 |
€3,677.39
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset Double acting DN300 - 12'' | 260898017013R | S1000015 |
€2,944.53
(excl. btw)
|
add to cart |
| Between flanges PN25 Carbon steel A216 WCB (1.0619) Double offset Spring return DN300 - 12'' | 260898017116R | S1000016 |
€4,076.37
(excl. btw)
|
add to cart |
